Comprehensive Guide to FR4 PCB

FR4 PCBs, made from glass-reinforced epoxy laminate, provide excellent strength, insulation, and reliability, making them the industry standard for diverse electronic applications. Highleap offers high-quality FR4 PCB manufacturing up to 60 layers, covering both prototype and mass production needs.

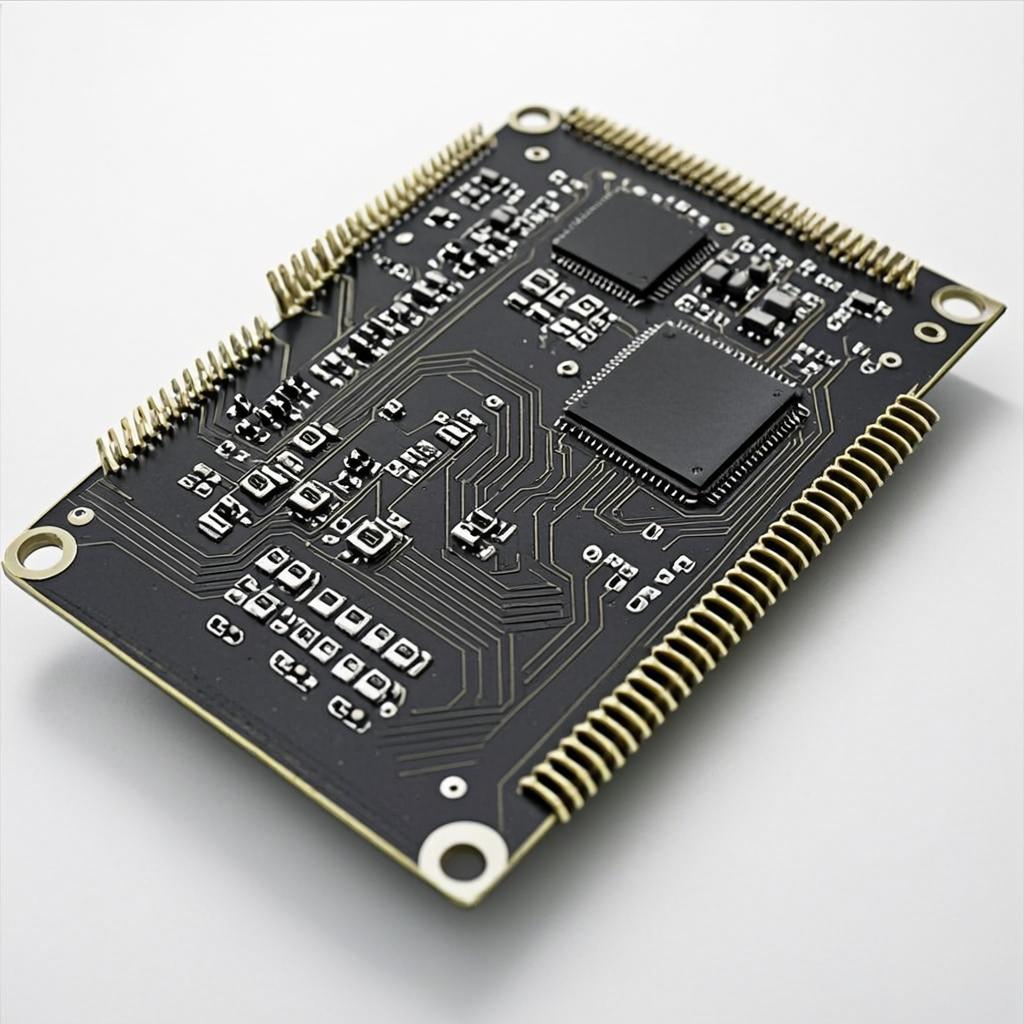

What is FR4 PCB?

FR4 PCB Definition and Composition

FR4 PCB refers to a printed circuit board made with FR4 material, which is a fiberglass-reinforced epoxy laminate. The term “FR” stands for flame retardant, while “4” identifies the specific grade of the material. FR4 substrate is widely used because it provides a stable mechanical structure and excellent dielectric insulation properties.

An FR4 fiberglass board typically consists of woven fiberglass cloth combined with epoxy resin, forming a rigid and durable laminate. This structure makes FR4 PCBs suitable for a variety of applications, from consumer electronics to industrial control systems. Due to its balance of mechanical strength, electrical insulation, and cost-effectiveness, FR4 remains the standard choice for most PCB manufacturing projects.

FR4 PCB Advantages

• Flame Retardant – Designed to resist fire, ensuring safe operation even under high-temperature conditions.
• Cost-Effective – Relatively low-cost compared to specialty materials, making it ideal for mass production.
• Mechanical Stability – Provides good mechanical strength and stability for various PCB designs.
• Wide Availability – Easily accessible in the market, ensuring convenient procurement.
• Broad Compatibility – Works with multiple PCB surface finishes like HASL, ENIG, and OSP.
• Versatile Use – Suitable for multilayer PCBs, double-sided boards, and prototypes.

FR4 PCB Limitations

• High Frequency Limitations – Not optimal for high-frequency circuits or RF applications above 10 GHz.
• Limited Thermal Conductivity – Lower thermal conductivity compared to metal-core PCBs, affecting heat dissipation.
• Chemical Sensitivity – Susceptible to degradation under harsh chemicals or solvents.
• Thermal Cycling Drift – Prone to warpage or delamination under extreme thermal cycles.
• Performance Ceiling – Not suitable for ultra-high-speed or advanced thermal designs.
• Moisture Absorption – Absorbs moisture over time, impacting dielectric properties and long-term reliability.

Highleap Electronics – FR4 PCB Manufacturer

Highleap Electronic stands out as a leading provider of FR4 PCB manufacturing and assembly, combining advanced technology, rigorous quality control, and flexible, customer-focused solutions. Here are the key advantages:

Comprehensive FR4 PCB Services

We provide end-to-end FR4 PCB manufacturing and assembly services, from prototype PCB fabrication to high-volume production. Our capabilities include multilayer FR4 PCBs, custom stack-ups, and FR4 PCB assembly with precise quality control, ensuring a reliable one-stop solution.

Wide Manufacturing Capabilities

Highleap Electronics supports a broad range of FR4 PCB thickness options, copper weights, and surface finishes, making it possible to meet diverse application needs in consumer electronics, automotive, medical, and industrial fields. Whether it’s single-sided FR4 PCB, double-sided FR4 PCB, or multilayer FR4 PCB, we can handle projects up to 60 layers.

Cost Optimization with FR4 PCB Solutions

Our FR4 PCB prototype and mass production services are designed to deliver cost-efficient solutions without compromising quality. By optimizing material utilization, panel design, and assembly processes, we help customers achieve affordable FR4 PCB manufacturing that supports both R&D testing and large-scale production.

Fast Turnaround and On-Time Delivery

With advanced production lines and strict workflow control, we ensure quick FR4 PCB prototyping and fast turnaround PCB assembly. Our lean manufacturing processes allow us to reduce lead times significantly, helping customers accelerate time-to-market for their electronic products.

Highleap Electronics’ FR4 PCB Manufacturing Capabilities

FR4 PCB Materials & Grades

FR4 is the most widely used glass-reinforced epoxy laminate in PCB manufacturing, valued for its excellent mechanical strength, electrical insulation, and cost-effectiveness. Below is a detailed breakdown of FR4 substrates, key grades, and performance metrics to help you select the ideal solution for your application.

FR4 Substrate Composition

FR4 PCB material is a composite substrate made primarily from woven fiberglass cloth impregnated with epoxy resin, reinforced with brominated flame-retardant additives. This combination ensures that FR4 substrates meet the UL94 V-0 flame resistance standard, making them one of the most widely used copper clad laminates (CCL) in PCB manufacturing. The epoxy fiberglass structure provides mechanical stability, while the resin system enhances insulation and bonding with copper foil. During PCB fabrication, multiple layers of FR4 prepreg are laminated under high temperature and pressure, forming a solid FR4 base material for single-layer, double-layer, and multilayer circuit boards.

Glass Transition Temperature and Grades

One of the most critical specifications of FR4 material is its glass transition temperature (Tg). Standard FR4 PCB materials typically have a Tg around 150°C, suitable for consumer electronics and general-purpose devices. For higher reliability, High-Tg FR4 PCBs offer Tg values of 170°C or above, which provide better resistance to thermal stress, reduced expansion during reflow soldering, and improved mechanical strength. In advanced applications such as automotive electronics, aerospace, and industrial control systems, FR4 TG180+ laminates are often preferred, as they deliver excellent dimensional stability under repeated thermal cycling.

FR4 Materials Properties

FR4 PCB materials combine reliable electrical performance, strong thermal stability, and excellent mechanical strength, making them the most widely used PCB substrate. The table below highlights key FR4 PCB substrate properties including dielectric constant, dissipation factor, decomposition temperature, and load-bearing capacity for different applications.

FR4 PCB Types and Layer Configurations

Standard vs High-Performance FR4 Types

• Standard FR4 PCB – The most widely used option for consumer electronics and industrial devices. Standard FR4 material offers a balance of cost-effectiveness and mechanical strength, making it suitable for single-sided and double-sided PCB applications.
• High-TG FR4 PCB – Designed for higher thermal reliability, this type of FR4 PCB is ideal for automotive electronics, power supplies, and high-frequency devices. With a glass transition temperature above 170°C, high-TG FR4 boards maintain stability under heat and stress.
• High-CTI FR4 PCB – These boards provide a Comparative Tracking Index above 600V, which helps prevent leakage currents and electrical failures in humid or high-voltage environments. High-CTI FR4 is often used in medical equipment and industrial automation systems.
• Halogen-Free FR4 PCB – An environmentally friendly variant that eliminates halogen-based flame retardants. Halogen-free FR4 boards meet strict RoHS and environmental compliance standards, making them suitable for green electronics and sustainable PCB design.

Layer Count Options

• Single-Sided FR4 PCB – Simple and cost-efficient, commonly used in LED lighting, consumer gadgets, and low-density applications.
• Double-Sided FR4 PCB – A versatile choice for more complex circuits, allowing traces on both sides of the board. Double-layer FR4 PCBs are widely applied in industrial control systems and home appliances.
• Multilayer FR4 PCB (4–60 layers) – High-density configurations designed for advanced electronics, including telecom, medical devices, and aerospace applications. Multilayer FR4 boards enable compact PCB stack-ups with improved signal integrity and reduced EMI.

Thickness and Weight Specifications

• PCB Thickness Range – FR4 circuit boards are available in thicknesses from 0.1mm to 6.0mm, making them adaptable for thin flexible designs as well as rigid high-power applications.
• Copper Weight Options – Standard copper weights range from 1oz to 3oz, with customization available for higher current-carrying capacity in power electronics and automotive PCBs.
• Warping Control in FR4 PCBs – Proper design and lamination processes help minimize PCB warpage, which is critical for multilayer FR4 boards and applications requiring high assembly precision.

FR4 PCB Manufacturing Processes

Core Manufacturing Methods

Choosing between pattern plating and negative electroplating depends on circuit density, conductor width/spacing, and production volume, making it an important decision in the FR4 PCB manufacturing process:

• Pattern plating process is a widely used FR4 PCB manufacturing method, where copper is plated only in the areas defined by the circuit image. This allows precise copper thickness control and reliable conductor patterns.
• Negative electroplating method, in contrast, removes unwanted copper from the panel, leaving the circuit traces. It is cost-effective for high-volume production and helps achieve consistent quality in multilayer FR4 PCB fabrication.

Advanced Processing Techniques

These advanced processes support high-reliability FR4 PCBs used in telecom, medical, and automotive applications:

• Laser Direct Imaging (LDI) positioning provides superior accuracy in fine-line circuits, reducing alignment errors and enabling high-density FR4 PCB designs.
• Metallization techniques, including electroless copper plating, ensure strong adhesion between layers and reliable vias, which are critical in multilayer FR4 PCB production.
• Drilling technologies such as mechanical drilling and laser drilling allow precise via creation. Mechanical drilling is suitable for through-holes, while laser drilling enables microvia structures for advanced FR4 HDI PCB designs.
