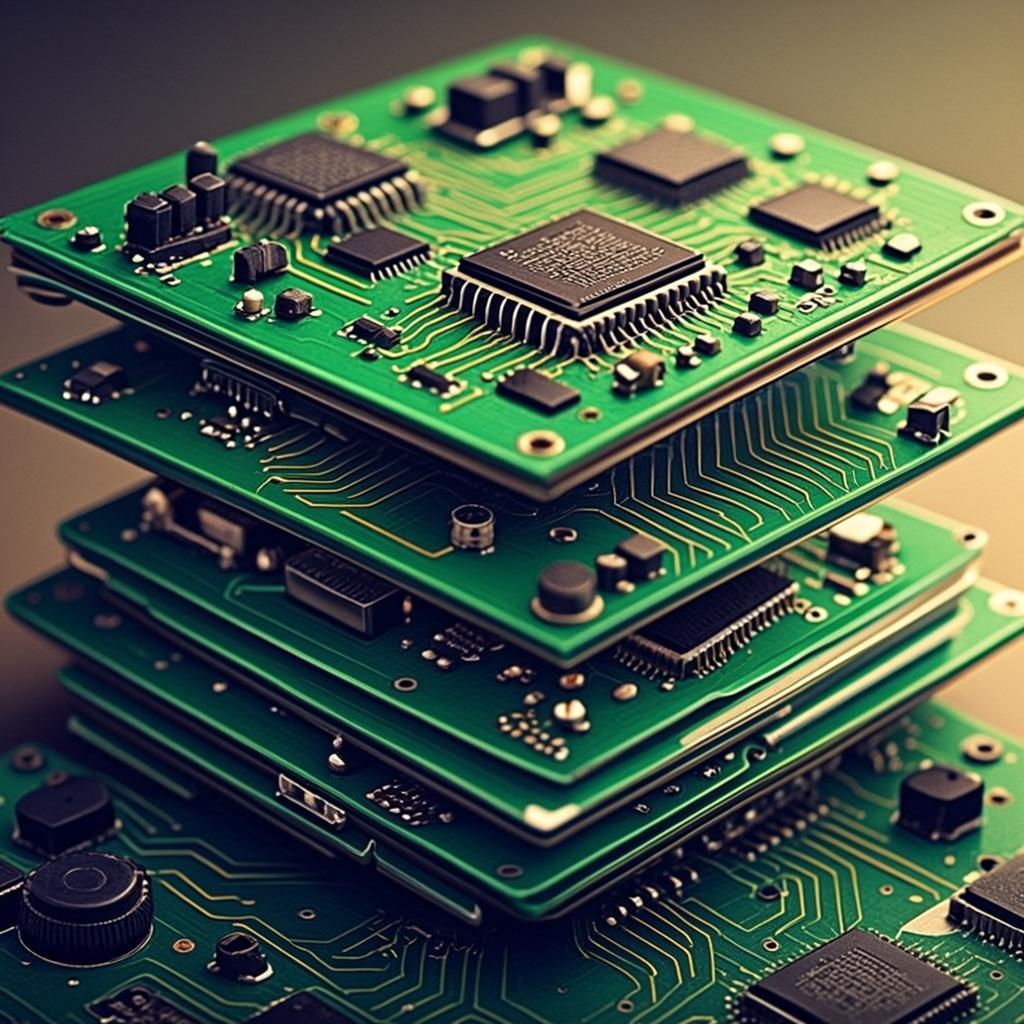

high precision pcb design pcb macro

Isola PCB, High Tg PCB

Isola 370HR High Tg PCB

  • Number of floors: 6
  • PCB thickness: 1.0mm
  • Surface treatment : ENIG
  • Copper thickness: 1OZ (35μm)
  • Minimum line width/spacing: 4mil/4mil

Topright Rigid PCB Capability:

ItemManufacture Capability
Layers1-50 Layers
HDI5+N+5
Impedance ControlledMin.+/-5%, General+/-10%
Material TypesFr-4, Fr-5, High-Tg, Aluminum ,Copper PCB, Halogen Free, Ceramic PCB Isola, Taconic, Arlon, Teflon, Rogers,
Max. Panel Dimension39000mil * 47000mil (1000mm * 1200mm)
Outline Tolerance± 4mil (± 0.10mm)
Board Thickness8mil-480mil (0.2 – 12mm)
Board Thickness Tolerance± 10%
Dielectric Thickness3mil-8mil ( 0.075mm-0.20mm)
Min. Track Width3mil ( 0.075mm )
Min. Track Space3mil ( 0.075mm )
External Cu Thickness0.5 OZ – 40 OZ ( 17um – 1400um)
Internal Cu Thickness0.5OZ – 15 OZ ( 17um – 525um)
Drilling Bit Size ( CNC )6mil-256mil ( 0.15mm – 6.50mm)
Finished Hole Dimension4mil-236mil(0.1mm – 6.0mm)
Hole Tolerance± 2mil (± 0.05mm)
Laser Drilling Hole Size4mil(0.1mm)
Aspect Ration16:01
Solder MaskGreen, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge2mil(0.050mm)
Plugged Hole Diameter8mil-20mil ( 0.20mm-0.50mm)
V-scoring+/-0.1mm, 15 30 45 60 Deg.
Beveling30 45 Deg.
Surface FinishingHASL, HASL(lead Free), ENIG(Gold 1 U” – 10 U”) Immersion Silver, Immersion Tin, OSP, Hard Gold ( up to 100u” )
CertificationUL RoHS ISO9001 SGS
Inspect StandardIPC 6012B Class 2 , IPC 6012B Class 3
TestingFlying probe, E-TEST, X-RAY Inspection , AOI
FilesGerber Protel DXP Auto CAD PADS OrCAD Express PCB etc

FAQ :

Q1: What’s your minimum order quantity?

A1: We have no MOQ ,1pcs is welcomed.

Q2:What file we should offer?

A2: PCB:Gerber file is better, ( Protel, power pcb, PADs file), PCBA: Gerber file and BOM list.

Q3: No PCB file/GBR file, only have the PCB sample, can you produce it for me?

A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q4: What any other information should be offered except for file?

A4:Following specifications are needed for quotation: a) Base material b) Board thickness: c) Copper thickness d) Surface treatment: e) color of solder mask and silkscreen f) Quantity

Q5:I am very satisfied after I read your information, how can I start to purchase my order?

A5: You could send your file to requirements to our email : pcb@frankenthalerfoundation.org

Q6 : What’s your payment type ?

A6: TT , Western Union , Paypal , Alipay etc

Q7: What is delivery terms and time?

A7: We usually use FOB terms and ship the PCBs in 5-15 workdays depending on your order quantity.

Q8: What is your packaging and shipment type ?

A8:
