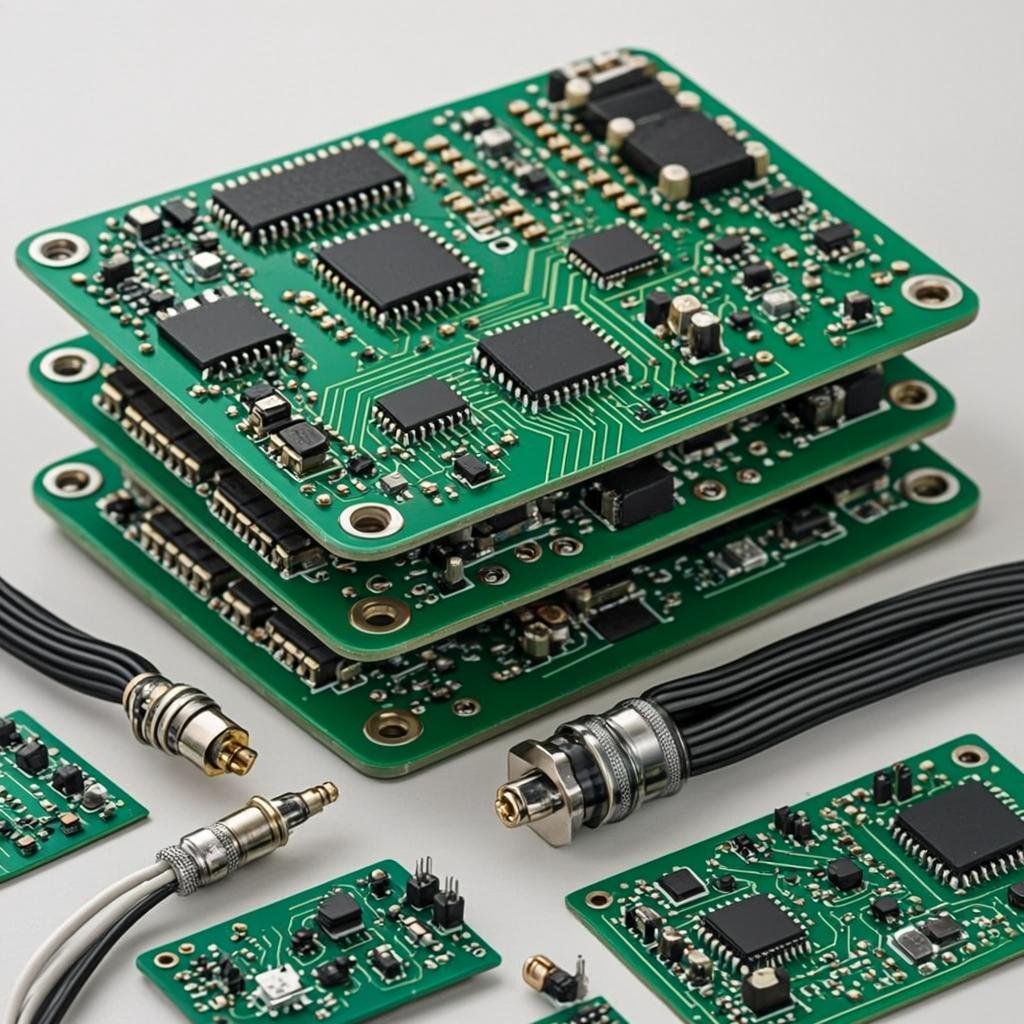

mc pcbs product clean

High - Layer Multilayer PCB Products

PCBMASTER produces 1-64 layer PCBs via mature thick-board lamination and laser drilling. Boasting 98%+ stable yield in prototyping and mass production, we deliver robust, reliable solutions for high-end electronics.

Need a custom PCB solution?

Get a free quote within 24 hours. Our engineers will help you optimize your design for performance and cost-efficiency.

  • 700+ Experienced Employees
  • 10000+ Successful Projects
  • 6 Number of factories
  • 300k+ Clients Worldwide

28 Layer High-Speed Panasonic M7 back drill

Material: PANASONIC R5785GN Layer: 28 Thickness: 2.75mm

22Layer High-speed back drill

Material: IT-968G Layer: 22 Thickness: 3.0mm

18Layer High-speed back drill

Material: IT-968G Layer: 18 Thickness: 3.3mm

18Layer-High speed PCB

Material: EM827 Layer: 18 Thickness: 2.4mm

16Layer High-Speed Back Drill

Material: IT968G Layer: 16 Thickness: 2.36mm

16 Layer High-Speed PCB

Material: TU-872 Layer: 16 Thickness: 2.36mm

14Layer Via PCB

Material: TU-872SLK Layer: 14 Thickness: 3.0mm

12Layer High-speed Automobile PCB（HDI Any-Level）

Material: EM-526 Layer: 12 Thickness: 0.94mm

10Layer Via Halogen-Free PCB

Material: H170HF---supplier：HZ Layer: 10 Thickness: 1.1mm

10Layer Via Automotive PCB

Material: S1000-2M Layer: 10 Thickness: 1.6mm

10 Layer Via Normal-PCB

Material: S1000-2M Layer: 10 Thickness: 1.34mm

10Layer High-Speed PCB

Material: IT170GRA1 Layer: 10 Thickness: 1.53mm

8Layer High-speed communication back Broard

Material: TU-872SLK Layer: 8 Thickness: 4.00mm

6Layer Via Automobile PCB

Material: IT-180A Layer: 6 Thickness: 1.6mm

6Layer Via security module board

Material: S1000H Layer: 6 Thickness: 1.6mm

6Layer Via security control board

Material: IT158TC Layer: 6 Thickness: 1.6mm

6Layer Via Security PCB

Material: IT180A Layer: 6 Thickness: 2mm

6Layer TV display PCB

Material: S1000-H Layer: 6 Thickness: 1.0mm

6 Layer TV display PCB

Material: IT-158 Layer: 6 Thickness: 1.0mm

4Layer PCB for vehicle display

Material: S1000H---supplier：SY Layer: 4 Thickness: 1.2mm

4 Layer 1.60mm black（core mechanical keyboard board）

Material: FR-4 Black-core Layer: 4 Thickness: 1.60mm

12L Automobile motherboard

Material: IT-180A Layer: 12 Thickness: 2.00mm

Need help selecting the right PCB?

Our technical experts are ready to assist you with product selection and custom solutions tailored to your specific requirements.
