Ceramic printed circuit boards (PCBs) are used for high-power, high-temperature, and high-frequency electronic applications. Among all ceramic materials available in the PCB industry, alumina (Al₂O₃) is widely used and the most cost-effective option. Although Al₂O₃ does not deliver the exceptional thermal or RF performance of premium ceramic substrates such as aluminum nitride (AlN) or silicon nitride (Si₃N₄), alumina ceramic PCBs offer a balance of performance, manufacturability, and price.
PCBONLINE provides one-stop high-quality ceramic PCB manufacturing. This article provides a comprehensive look at the characteristics and manufacturing methods of Al₂O₃ ceramic PCBs.
An alumina ceramic PCB is a printed circuit board built on a substrate made of aluminum oxide ceramic. Alumina is a stable, electrically insulating, mechanically strong, and thermally conductive material commonly used in the electronic packaging industry.
Alumina substrates used in PCB manufacturing have a purity of 96% or 99% Al₂O₃, with 96% alumina being the standard choice for cost-sensitive applications.
Al₂O₃ ceramic PCBs have these advantages:
When comparing ceramic substrates, alumina almost always comes out as the most economical option. The low cost of Al₂O₃ ceramic PCBs comes from several factors:
Al₂O₃ ceramic PCB used for high-thermal LED light
Al₂O₃ ceramic PCBs are versatile and reduce prototype and mass-production costs. As a result, alumina is generally the lowest-cost ceramic PCB option, often 30–70% cheaper than aluminum nitride.
Although alumina's thermal conductivity is modest compared with other ceramic materials, it is still far above that of FR4 and standard metal-core PCBs.
Below is the thermal conductivity of Al₂O₃ and other ceramic substrates.
Al₂O₃ ceramic PCBs' thermal performance is enough for these applications:
However, for applications requiring extremely high heat dissipation or very high reliability under thermal cycling, Al₂O₃ ceramic PCBs are not enough to meet their requirements:
For these applications, AlN or Si₃N₄ ceramic PCBs are appropriate options.
Al₂O₃ ceramic PCBs offer moderate RF performance. Their electrical characteristics include:
For the good RF performances, Al₂O₃ ceramic PCBs are used in microwave circuits up to the mid-GHz range, sensor and transducer electronics, and high-voltage isolation designs.
The RF performance of Al₂O₃ is moderate (Dk 9.5), but the other ceramic PCBs offer better performance:
For this reason, Alumina is not a high-end RF material. Although alumina performs better than FR4 in RF scenarios, an Al₂O₃ ceramic PCB still cannot compete with LTCC or PTFE ceramic PCBs when dealing with millimeter-wave communications, high-frequency antennas, satellite RF modules, and ultra-low-loss microwave components.
Al₂O₃ ceramic PCBs offer excellent mechanical strength and chemical stability, so they can be used in harsh environments.
Other advantages of Al₂O₃ ceramic PCBs are:
However, limitations of Al₂O₃ ceramic PCBs are also quite a few:
Al₂O₃ ceramic PCB can be fabricated using DPC, DBC, or thick-film technologies.
DPC uses a laser to activate the alumina surface, followed by electroless copper deposition and electrolytic copper thickening. Applications of DPC alumina PCBs include sensors, RF components, and precision electronics. They offer the advantages of:
DBC bonds a thick copper foil directly to alumina using an oxygen-rich process. Applications of DBC alumina PCBs include power modules, high-current drivers, and IGBT substrates. They offer the advantages of:
This traditional method prints conductive and resistive pastes (silver, gold, or copper) onto alumina using screen printing. Applications of thick-film alumina PCBs include LED substrates, sensor housings, and heater circuits. They offer the advantages of:
Because of affordability and balanced properties, Al₂O₃ ceramic PCBs are widely used in:
PCBONLINE is a one-stop ceramic PCB board manufacturer founded in 2005, providing turnkey AlN PCB and alumina PCB made by any of the above manufacturing methods. Besides, ceramic IGBT modules, ceramic COB LED modules, ceramic LED plates, etc, can also be provided by PCBONLINE.
Advantages of PCBONLINE in ceramic PCB boards

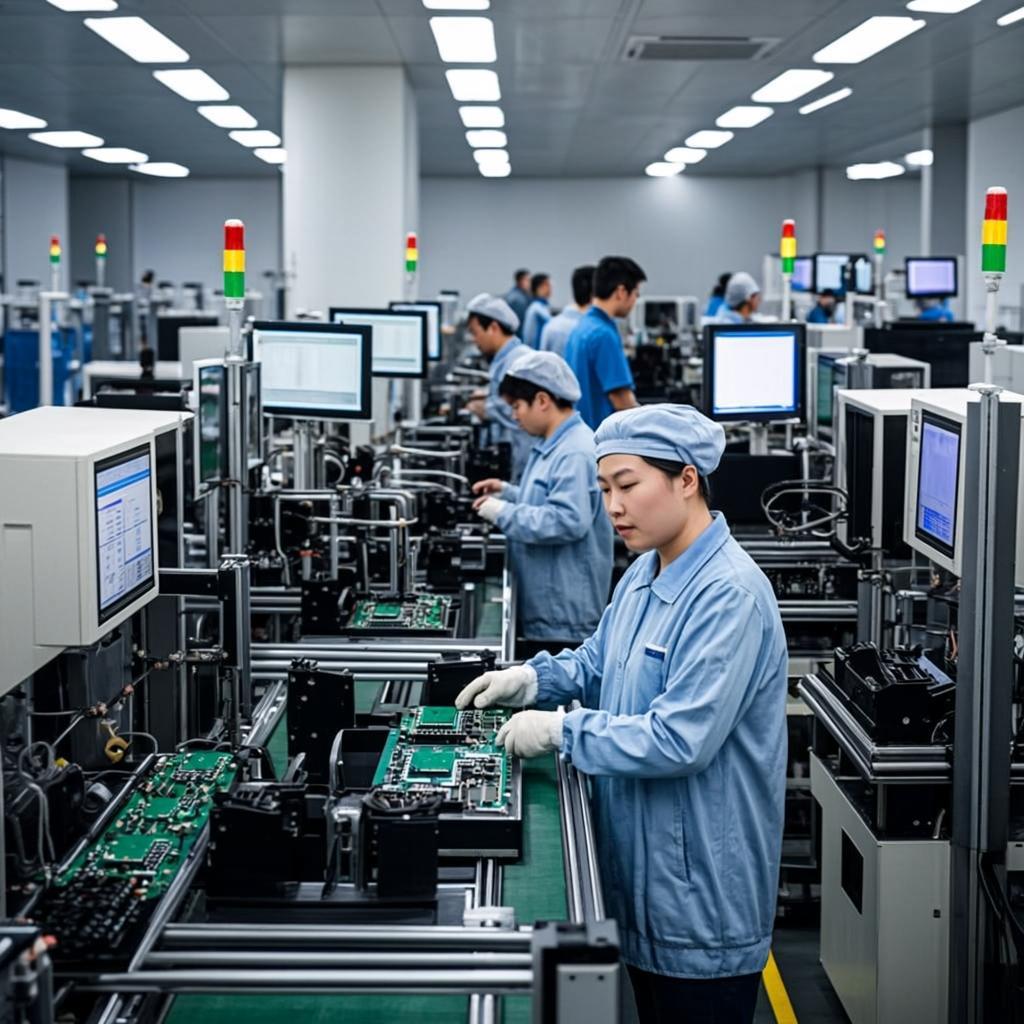

PCBONLINE manufactures, assembles, and tests ceramic PCBs as a source factory manufacturer under one roof, from prototypes to bulky production.
PCBONLINE can manufacture ceramic PCBs to be HDI, high-frequency, multilayer, and double-sided.
Provides one-on-one free and professional DFM (design for manufacturing) for ceramic PCB boards before and during prototyping/sampling to ensure the success of your project and seamless mass production.
PCBONLINE has powerful ceramic PCB manufacturing capabilities. The copper layer thickness of ceramic PCBs is arbitrarily customized from 1μm to 1mm.
High-quality ceramic PCB boards with no oxide layer on the PCB surface have better welding performance and high-temperature resistance.
For ceramic PCB manufacturing and assembly orders at $5,000 and above, we offer free complete ceramic PCBA samples and functional tests. If you feel interested in ceramic PCB boards from PCBONLINE, feel free to send your inquiry by email at pcb@frankenthalerfoundation.org.
Al₂O₃ ceramic PCBs are cost-effective with moderate thermal dissipation and RF performances. To ensure the success of your PCB/PCBA projects, work with the turnkey ceramic PCB manufacturer PCBONLINE.
