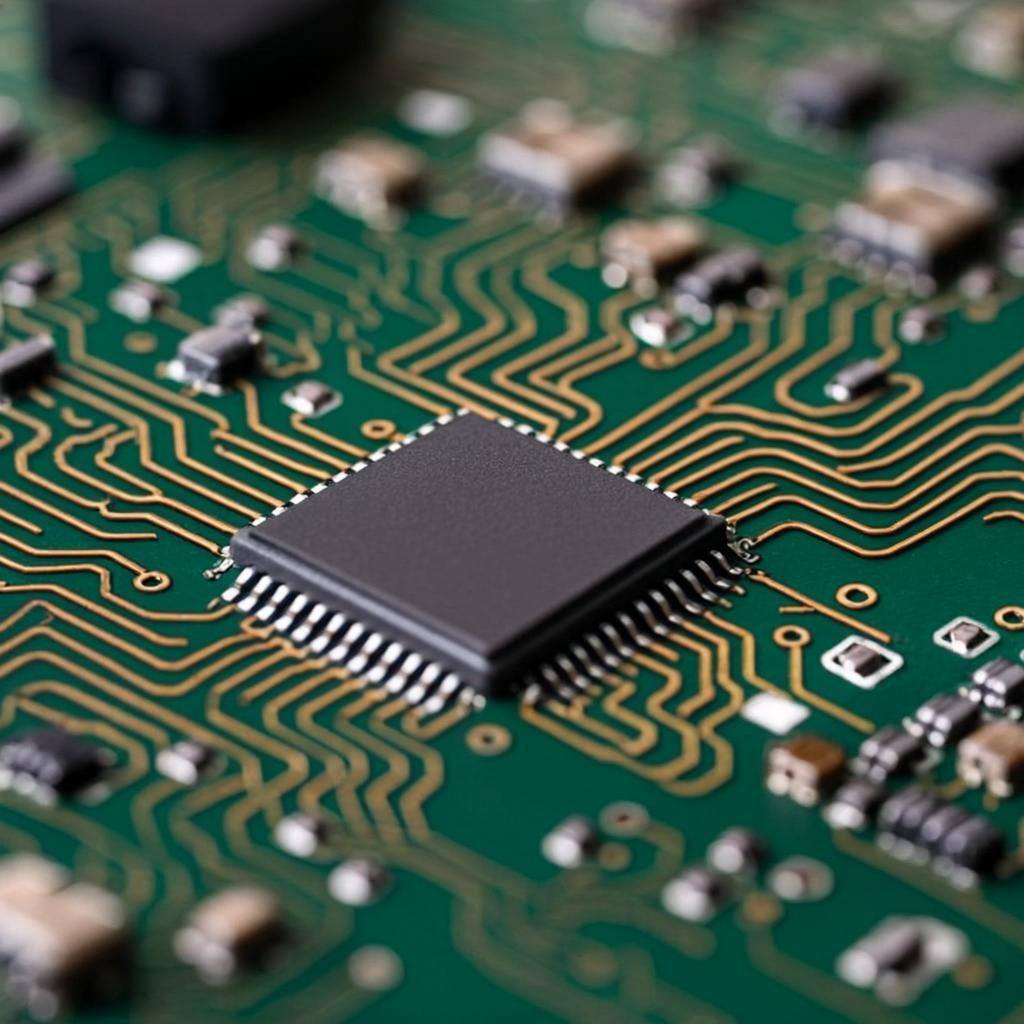

microwave rf pcb testing pcb macro

PTFE PCB: Cost, Rogers vs FR4 & Polyimide

Printed circuit boards (PCBs) are the backbone of modern electronics, and the choice of laminate material directly affects signal performance, cost, and reliability. While FR4 is the most common PCB material, certain high-frequency and RF applications demand something more advanced—PTFE PCB, also known as Teflon PCB. PTFE substrates offer exceptional electrical properties, making them a preferred choice for 5G, satellite, and microwave systems. Alongside PTFE, materials like Polyimide and Rogers laminates also play an important role in advanced circuit design.

What is PTFE PCB?

PTFE (Polytetrafluoroethylene), widely recognized under the brand name Teflon, is a fluoropolymer material used in high-performance PCBs. Compared to standard FR4, PTFE has:

  • Low dielectric constant (Dk): Ensures minimal signal delay.
  • Low dissipation factor (Df): Reduces signal loss at high frequencies.
  • Excellent thermal stability: Maintains performance across wide temperature ranges.
  • Chemical resistance & durability: Suitable for aerospace and defense systems.

These properties make PTFE PCB ideal for:

  • RF and microwave circuits
  • Antennas and radar systems
  • Satellite communication devices
  • High-speed digital systems

PTFE vs FR4 PCB

FR4 is a fiberglass-reinforced epoxy laminate that dominates consumer electronics. However, it struggles in high-frequency domains.

Key differences:
  • Signal Performance: PTFE outperforms FR4 in RF applications due to lower Dk and Df.
  • Thermal Properties: PTFE withstands higher operating temperatures.
  • Cost: FR4 is cheaper and widely available, while PTFE is significantly more expensive.
  • Applications: FR4 suits general electronics; PTFE is essential for RF/microwave systems.
When to choose:
  • Use FR4 for cost-sensitive, low-frequency designs.
  • Use PTFE for high-frequency, high-reliability circuits where performance matters most.

PTFE vs Polyimide PCB

Another alternative material is Polyimide, known for flexibility and heat resistance.

Comparison:
  • PTFE: Best for RF, microwave, and high-speed signal transmission.
  • Polyimide: Best for flexible PCBs, aerospace, and high-temperature environments.
  • Cost: Polyimide is less expensive than PTFE but more costly than FR4.
Use-case difference:
  • Choose PTFE when signal integrity is the top priority.
  • Choose Polyimide when you need flexibility and thermal durability.

Rogers PCB and Other PTFE Materials

While PTFE is a base material, many manufacturers offer specialized laminates. The most recognized is Rogers PCB, with grades like Rogers 4350B and Rogers 5880.

Why Rogers PCB?
  • Lower insertion loss compared to FR4.
  • Stable performance at GHz frequencies.
  • Excellent impedance control.

Other PTFE-based suppliers include Taconic and Isola, each providing unique laminates optimized for RF, microwave, and millimeter-wave applications.

PTFE PCB Price Factors

PTFE PCBs are more expensive than FR4 and Polyimide due to:

  • Material cost: PTFE laminates are costly to produce.
  • Processing difficulty: Drilling, plating, and adhesion require special techniques.
  • Volume: Low-volume orders drive up per-unit cost.
General pricing trend:
  • FR4 PCB: Low cost, mass-market.
  • Polyimide PCB: Medium cost, niche applications.
  • PTFE/Rogers PCB: Highest cost, specialized RF/microwave usage.

For example, JLCPCB and other large fabricators list PTFE PCB pricing significantly higher than FR4 equivalents, especially for small-batch production.

PTFE PCB Manufacturers

Several PCB manufacturers specialize in PTFE-based designs:

  • Rogers, Taconic, Isola – leading material suppliers.
  • ALCANTAPCB,JLCPCB, PCBONLINE, NextPCB, HILPCB, IPCB, MCLPCB – fabricators offering PTFE PCB prototyping and mass production.

When selecting a manufacturer, engineers should evaluate:

  • PTFE processing capability (drilling, plating, lamination).
  • RF design support and impedance control expertise.
  • Cost and lead time for low-to-high volume runs.

Applications of PTFE PCB

PTFE substrates are essential for industries requiring ultra-low signal loss and frequency stability:

  • 5G base stations and network hardware
  • RF and microwave devices (filters, couplers, amplifiers)
  • Automotive radar systems
  • Aerospace and defense electronics
  • High-speed data transmission systems

Conclusion

PTFE PCBs deliver unmatched electrical performance in RF, microwave, and high-speed digital applications. Compared to FR4 and Polyimide, PTFE offers lower signal loss and superior frequency stability—making it the go-to choice for advanced communication systems. While the cost is higher, the performance benefits far outweigh the investment in mission-critical designs.

Engineers should consider PTFE when working on 5G, satellite, radar, and aerospace applications, while using FR4 or Polyimide for standard or flexible electronics. Choosing the right manufacturer ensures reliable production, precise impedance control, and cost efficiency.
